GRE Pipe Curing Silicone Heating Blanket

Optimal curing of the composite materials, carbon, and epoxy prepreg.
Available with PT100 sensor.
1 meter power cord.
Special sizes produced upon request.

Product Description:

Product description

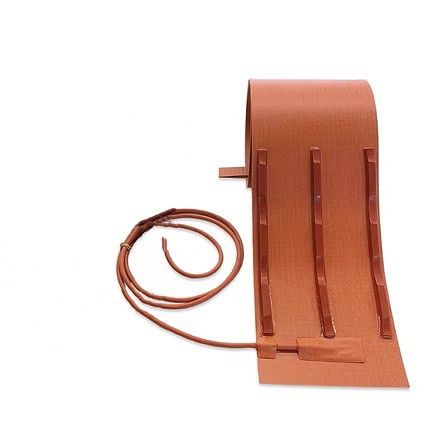

Pipe Curing Silicone Heating Blankets are designed for fast and securely curing and joining PE & GRE Pipes but is also used in a variety of other purposes (ie. curing GRP, GFRP, RTR and FRP).

These pipe curing blankets are designed in durable, flexible and light material with the ability to heat to a maximum temperature of 180°C. This blanket comes without insulation, which results in perfect contact and even heat spreading to the PE (Polyethylene) or GRE (Glass Reinforced Epoxy) pipes.

Pipe Curing Silicone Heating Blankets come installed with either a bimetal limiter (180°C) or PT100 sensor (which requires a separate temperature controller).

Our heating blankets are available in many standard sizes with different outputs, which can be seen in the following specifications. Contact us if a custom size and/or output is required.

Technical specifications:

Optimal curing of the composite materials, carbon, and epoxy prepreg.
Available with PT100 sensor combined with Digitherm controller or with a bimetal limiter (0-180°C).
1 meter power cord.
Many sizes in stock.
Special sizes produced upon request.

This product is perfect for:

Curing and joining pipes
Curing pipes
Curing Epoxy
Curing glass reinforced epoxy (GRE)
Curing glass-reinforced plastic (GRP)
Curing glass-fiber reinforced plastic (GFRP)
Curing Reinforced Thermosetting Resin (RTR)
Curing Fibre-reinforced plastic (FRP)

Available Sizing:

Blanket Size	Pipe Size (Ø)	Power
80mm x 350mm	1-2” (25-50mm)	125W
110mm x 550mm	3-4” (75-100mm)	250W
140mm x 880mm	6-8” (150-200mm)	285W
200mm x 1350mm	10-12” (250-300mm)	950W
300mm x 1700mm	14-16” (350-400mm)	1460W
300mm x 1900mm	18-20” (450-500mm)	1850W
300mm x 3050mm	28-32” (700-800mm)	2700W
300mm x 3670mm	33-36” (800-900mm)	3100W
300mm x 3670mm	36-40” (900-1000mm)	3200W
